Single Mode Simplex 2M SC/UPC-LC/UPC Optical Fiber Jumper

Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: Patch Cord LC/UPC-SC/UPC
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: bag
Supply Ability: 10000pcs/Week

我要詢價

詳情介紹

Fiber Type:	OM3 50/125	Fiber Count:	1C
Jacket Material:	LSZH / PVC	Length:	2M/3M/5M Or Customized
Connector Type:	SC/UPC-LC/UPC	Cable Diameter:	0.9mm/2.0mm/3.0mm
Insertion Loss:	≤0.3dB	Operating Temperature:	-20°C To+50°C
High Light:	Simplex Optical Fiber Jumper, 2M Optical Fiber Jumper, 2M Simplex Fiber Optic Jumper Cable

SC/UPC-LC/UPC Optical Fiber Jumper Single Mode Simplex 2M

Description:

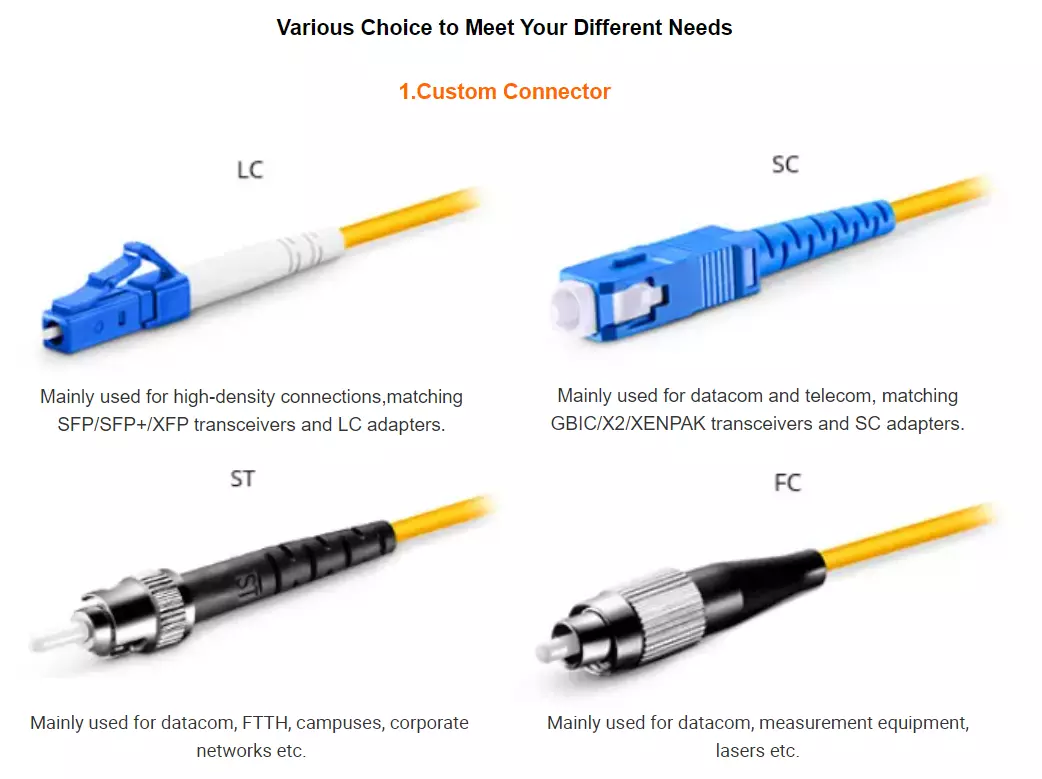

Fiber optic patch cord is becoming more popular for fiber installation project It is definitely an efficient and economical solution rather than on site termination or splicing. FC, SC, LC, ST connector are available SM or MM cables type Polishing: PC, UPC and APC Applicable to connect the cable.Fiber optic patch cord are used to connect to devices and are suitable for Gigabit Ethernet, multimedia, premise installations, fiber optics, Fiber optic transceiver panels and fiber optic network, industrial, and military applications. Connector function Dust plugs at the tips for protection.

Features:

Low insertion loss, high return loss.
Excellent mechanical endurance.
High credibility and stability.
Good in repeatability and exchangeability.

Appplication:

FTTH, PON.
Local Area Networks.
Local ring net.
Optical fiber communication system.
Optical fiber test equipment.
Optical fiber sensor.
Industry and military application.

Technical reference:

Patch cord Connector	UPC (SM)	APC (SM)	UPC (MM)	APC(MM)
Return Loss (dB)	≥50	≥60	≥30	≥30

Insertion Loss (dB)	≤0.2 (max≤0.3)
Repeatability (dB)	≤0.1
Durability(1/Matings)	≥500
Operation Temperature (°C)	-20~+70
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber type	SM 9/125um, MM 50/125um,MM 62.5/125um,ect
Diameter	0.9mm 2.0mm, 3.0mm etc
Cable material	LSZH / PVC
Cores	Simplex / Duplex

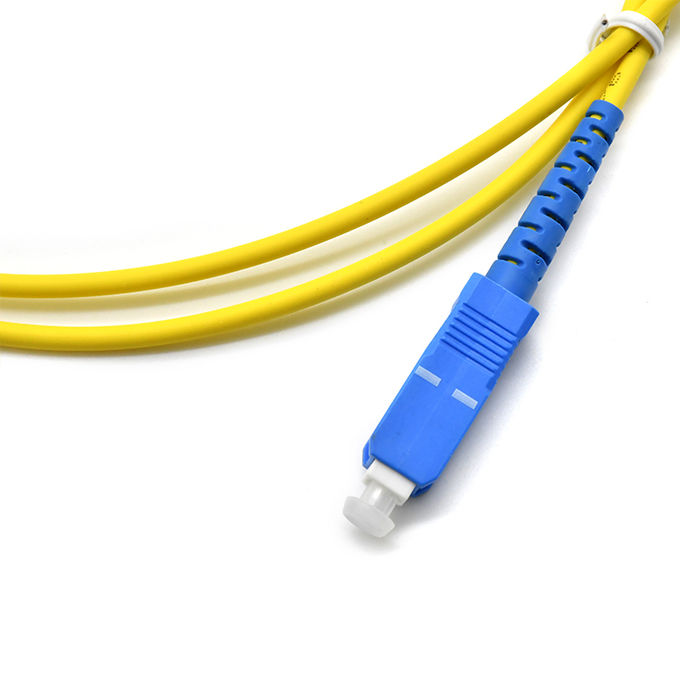

Single Mode Simplex 2M SC/UPC-LC/UPC Optical Fiber Jumper 0

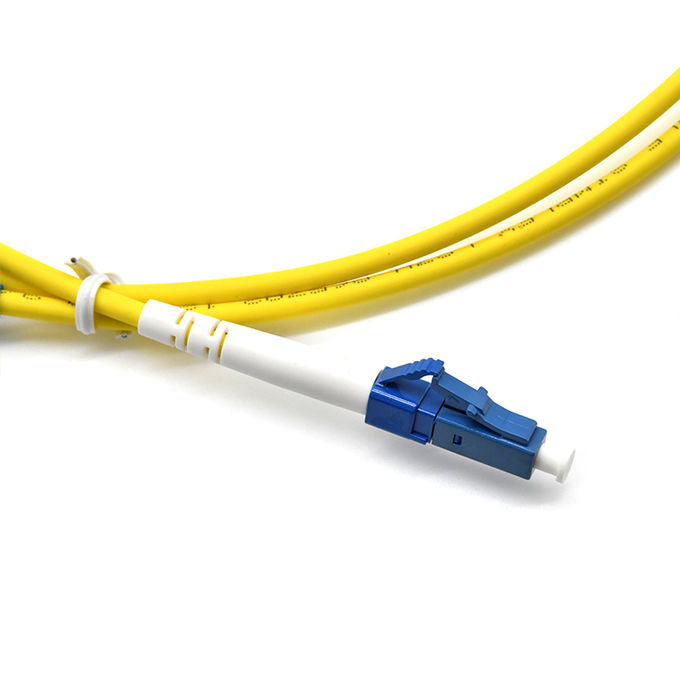

Single Mode Simplex 2M SC/UPC-LC/UPC Optical Fiber Jumper 1

Single Mode Simplex 2M SC/UPC-LC/UPC Optical Fiber Jumper 2
