72core Figure 8 GYTC8S Self-Supporting Armored Fiber Optic Cable

Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYTC8S 72 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 100000M/Week

我要詢價(jià)

詳情介紹

Fiber Type:	G652D Or As Your Request	Fiber Brand:	YOFC / Fiberhome / Corning
Fiber Count:	2-288 Core	Central Strength Member:	Steel Wire
Protective Layer:	Corrugated Steel Tape	Outer Sheath Material:	HDPE
Installation:	Self- Supporting Aerial	Life Expectancy:	More Than 30 Years
Operating Temperature:	-40°C To+70°C	Certification:	ISO9001/CE

72core figure 8 GYTC8S self-supporting armored fiber optic cable

Description:

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.

Characteristics:

◆ Good mechanical and temperature performance.
◆ High strength loose tube that is hydrolysis resistant.
◆ Special tube filling compound ensure a critical protection of fiber.
◆ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
◆ The following measures are taken to ensure the cable watertight:
? Steel wire used as the central strength member
? Loose tube filling compound
? 100% cable core filling
? PSP enhancing moisture-proof
? Water-blocking material

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial.
3. Long distance and local area network communication.

Cable Mechanical Characteristic:

Cable type	Diameter (mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Crush Resistance Long/Short Term(N/100mm)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GYTC8S-2~36	8.6*15	140	600/1500	300/1000	20D/10D	-20~+70
GYTC8S-38~72	10.5*16.9	190
GYTC8S-74~96	12*19	250
GYTC8S-98~120	13*20	270
GYTC8S-122~144	15*22	305

Mechanical requirements and methods of fiber cable:

Tensile strength	10935N, conform to IEC 794-1-E1,While Fiber Strain≤0.33%
Crush	2200N/100mm, conform to IEC 794-1-E3
Impact	Conform to IEC 794-1-E4
Repeated bending	Conform to IEC 794-1-E6
Torsion	Conform to IEC 794-1-E7
Flexing	Conform to IEC 794-1-E8
Kink	Conform to IEC 794-1-E10
Cable bend	Conform to IEC 794-1-E11
Vibration	Conform to IEC 794-1
Water penetration	Conform to IEC 794-1-F5B
Abrasion	Conform to IEC 794-1-E2
Temperature cycling test	Conform to IEC 794-1-F1
Dielectric strength of outer jacket	Conform to ITU-T Rec.K25

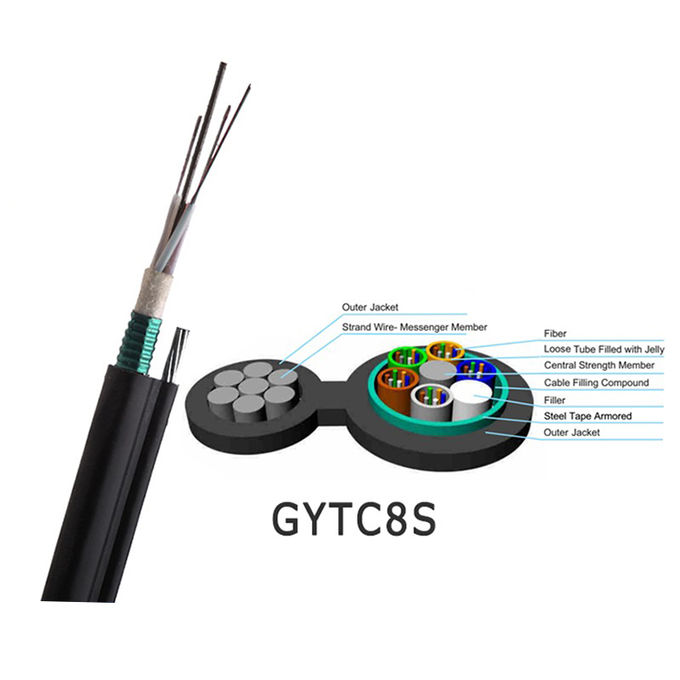

72core Figure 8 GYTC8S Self-Supporting Armored Fiber Optic Cable 0
