Place of Origin: China Brand Name: KNOFC Certification: CE/ISO9001 Model Number: ADSS 144 core Minimum Order Quantity: 1km Price: Negotiable Packaging Details: Wooden Drum Supply Ability: 500000M/Week
| Product Name: | ADSS Fiber Cable 144 Core | Fiber Type: | Single Mode / Multimode |
| Fiber Count: | 2-288cores | Jacket Material: | HDPE Or AT |
| Supporting Strength: | Aramid Yarn/Kevlar Yarn | Central Strength Member: | FRP |
| Span: | 50-1000M | Application: | Self-Support Aerial |
| High Light: | ISO9001 144 Core Fiber Optic Cable, ADSS All Dielectric Self Supporting Cable, 144 Core ADSS Fiber Optic Cable | ||
ADSS All-Dielectric Self- Supporting Fiber Optic Cable 144 Core
Description:

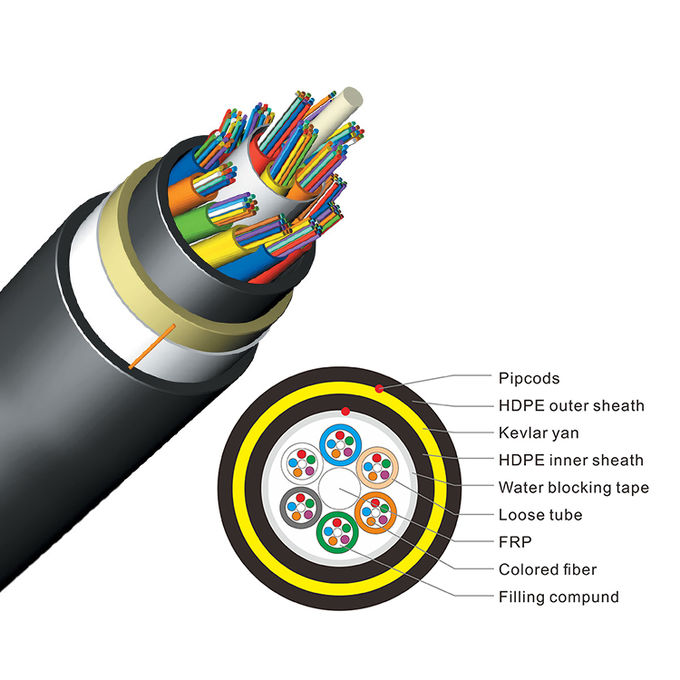

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water- blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (HDPE) or AT sheath.
Characteristics:
1. Can be installed without shutting off the power.
2. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
3. Large span lengths and the largest span is over 1000m.
4. Good performance of tensile strength and temperature.
Application:
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

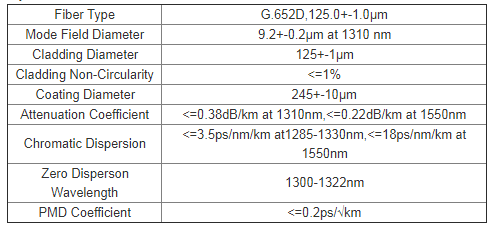

Optical Fiber Characteristic:
Cable Mechanical Characteristic:
| Cable type | Diameter(mm) |
Weight (kg/km) |
Tensile strength Long/short term (N) |
Bending radius Dynamic/static (mm) |
Storage temperature ( ℃ ) |
| ADSS-2~60 | 10.0 | 110 | 1000/3000 | 20D/10D | -20~+70 |
| ADSS-62~72 | 12.0 | 120 | 1000/3000 | 20D/10D | -20~+70 |
| ADSS-74~96 | 14.0 | 130 | 1000/3000 | 20D/10D | -20~+70 |
| ADSS-98~144 | 16.0 | 185 | 1000/3000 | 20D/10D | -20~+70 |
| ADSS-146~288 | 20.0 | 298 | 1000/3000 | 20D/10D | -20~+70 |
