1U Fiber Optic Patch Panel LC Rack Mount Fiber Optic Terminal Box

Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: Fiber Optic Patch Panel 12 Ports 1U
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: box
Supply Ability: 50000pcs/month

我要詢價

詳情介紹

Material:	Cold Roll Steel Sheet	Color:	Black
Connector:	SC LC FC ST	Application:	FTTX Network
Port:	12/24/48/96/144	External Size:	1U,2U,3U,4U
High Light:	1U Fiber Optic Patch Panel, Rack Mount Fiber Optic Terminal Box, 1U Fiber Optic Terminal Box

1U Fiber Optic Patch Panel LC Rack Mount Type Optical Fiber Terminal Box

Description:

This kind patch panel can be applied in branch connection of optical cable termination, 19' standard structure, sliding design, rack mounted , suitable for FC, SC, ST, LC adapters.

Features:

1. Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc
2. capacity: 12,24,48 splices, max.48 splice
3. 19 inches; 1U, 2U
4. Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
5. Suitable for ribbon and bunchy fiber cable

Technique Performance:

1. External size 480x250x1U, 2U,
2. Fiber capacity from 12 cores to 48 cores
3. Insertion loss: <0.3dB
4. Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
5. Winding radius ≥40mm
6. Working temperature -25°C~+45°C
7. Atmosphere pressure 70~106Kpa
8. Insulated Resistance 2×10MΩ/500V(DC)W
9. Voltage- resistance:Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.

Application:

1.The proper sealing for dust protection structure
2.The splicing storage is the cassette organizer system
3.The drawer is slide out for splicing or removable for initial pigtail installation
4.Enough space to coil up excess length of cables

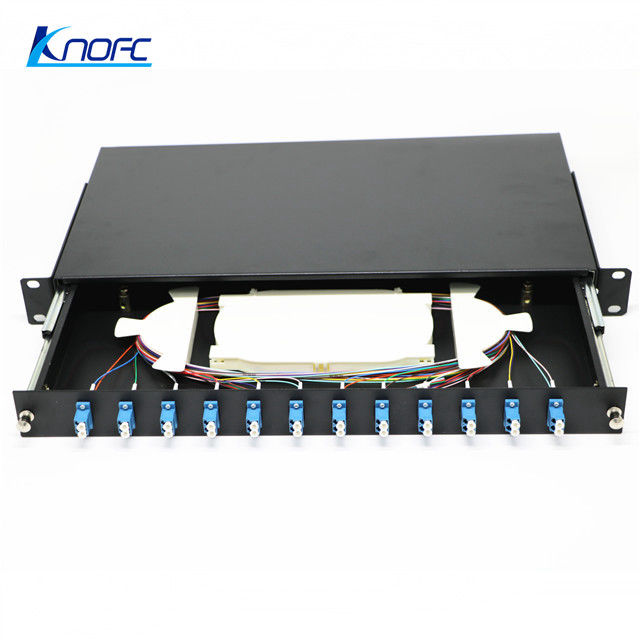

1U Fiber Optic Patch Panel LC Rack Mount Fiber Optic Terminal Box 0
