H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI

Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: OptiTap Compatible H Connector SC Drop Cable Pigtail
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Individual box or customized
Supply Ability: 60000pcs/Month

我要詢價

詳情介紹

Connector Type:	OptiTap Compatible H Connector SC	Cable Type:	FTTH Drop Cable
Length:	50M 100M 150M 200M Or Customized	Application:	OptiTap CPRI
Fiber Type:	G657A2 Or As Your Request	Fiber Brand:	YOFC / Fiberhome / Corning / KNOFC
Jacket Material:	LSZH	Operating Temperature:	-40°C To+70°C
High Light:	FTTH Drop Cable Assembly, SC APC Drop Cable Assembly, OptiTap CPRI Optic Cable Assembly

1 Fiber Fiber Optic H connector MINI IP SC APC OptiTap to SC/APC FTTH drop Cable Assembly

Description:

Corning Optitap/H connector fiber optic patch cable provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.The end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications.

Features:

Available in multiple fiber lengths to meet all your FTTX design drop deployment.
Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
Designed to reduce the cost and time of drop fiber deployment in the network.
Provides superior weather resistance for FTTA and other outdoor applications.
Can be installs without special tooling.
100% tested assemblies built in a controlled environment.
Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber.
Flexibility and reliability provides fast and simple deployments within a network.
Provides bend protection for installation and long term use.
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.

Application:

Multi-purpose Outdoor.
For connection between distribution box and RRH.
Deployment in Remote.

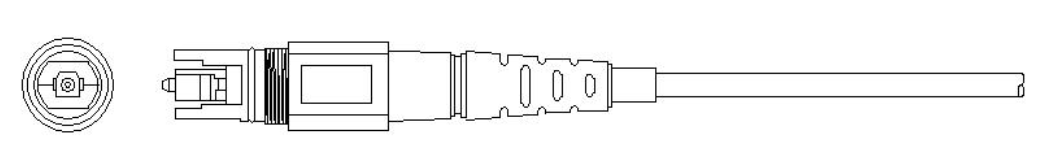

Dimensional Diagrams:

H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI 0

Connector technical data:

Items	Values
Connector Type	OptiTap compatible H connector SC
Insertion Loss	<0.3dB
Return Loss	>60dB

Cable technical data:

Item	Values
Cable Type	Outdoor FTTH Drop Cable
Sheath Material	LSZH
Messenger Wire	1.0±0.02mm
Steel Wire	0.5±0.02mm
Fiber Type	G657A1 / G657A2
Cable Diameter	(2.0±0.1)x(5.0±0.2)mm

Cable Paremeters:

Cable type	Diameter(mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GJYXCH-1~4	2.0*5.0mm	22	300/600	20D/10D	-20~+70

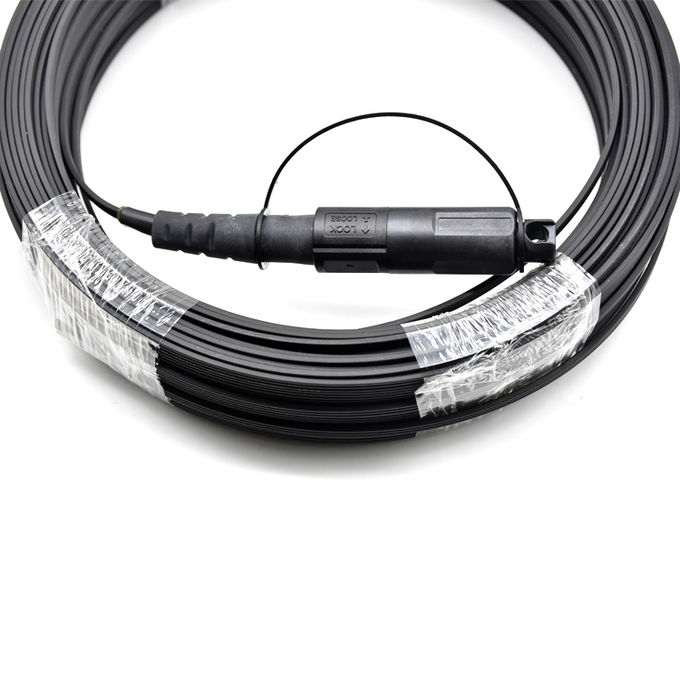

H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI 1
